PR-421-View01
PR-421-View02PR-421-View05PR-421-View03PR-421-View04

PR-421

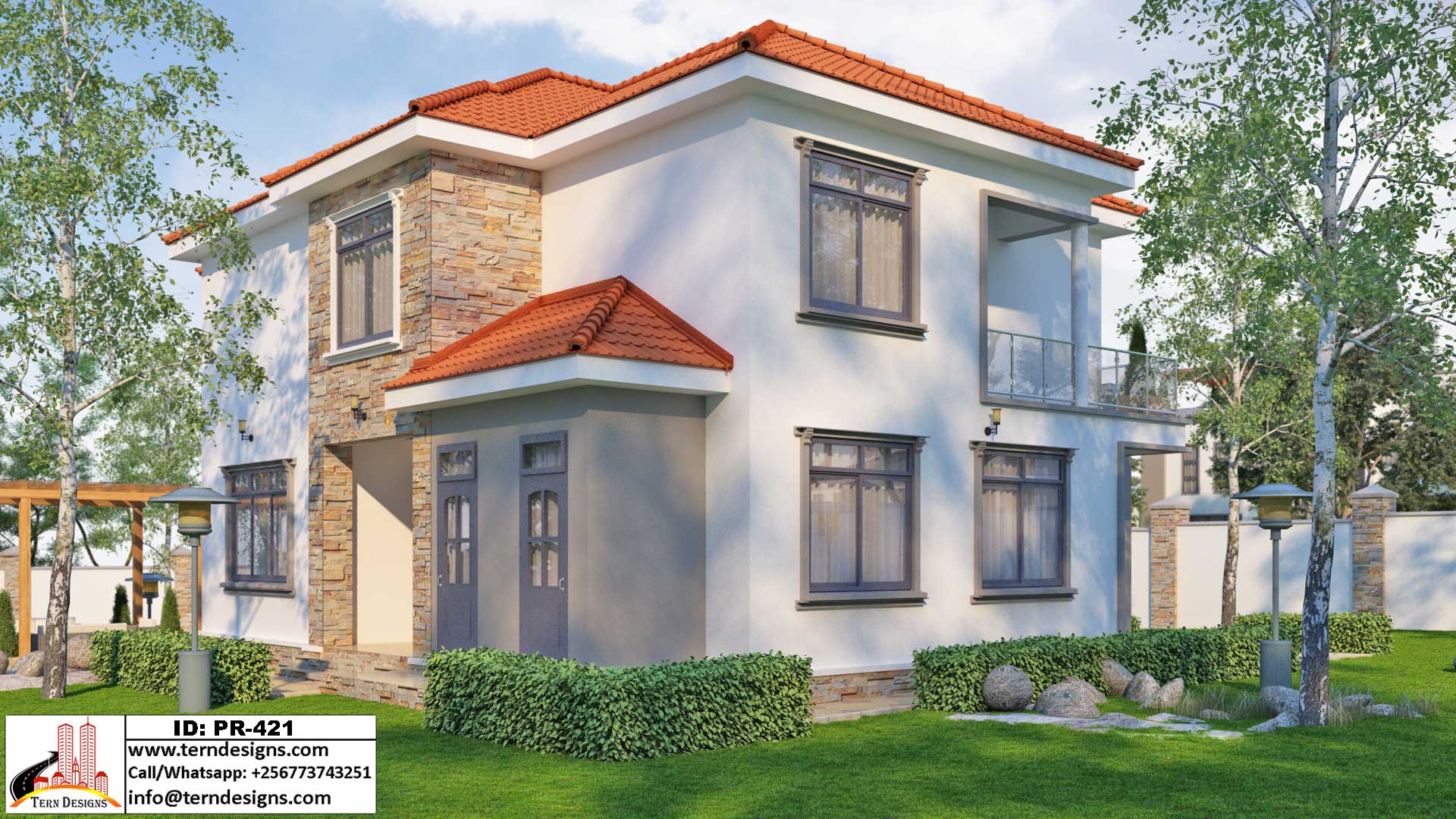

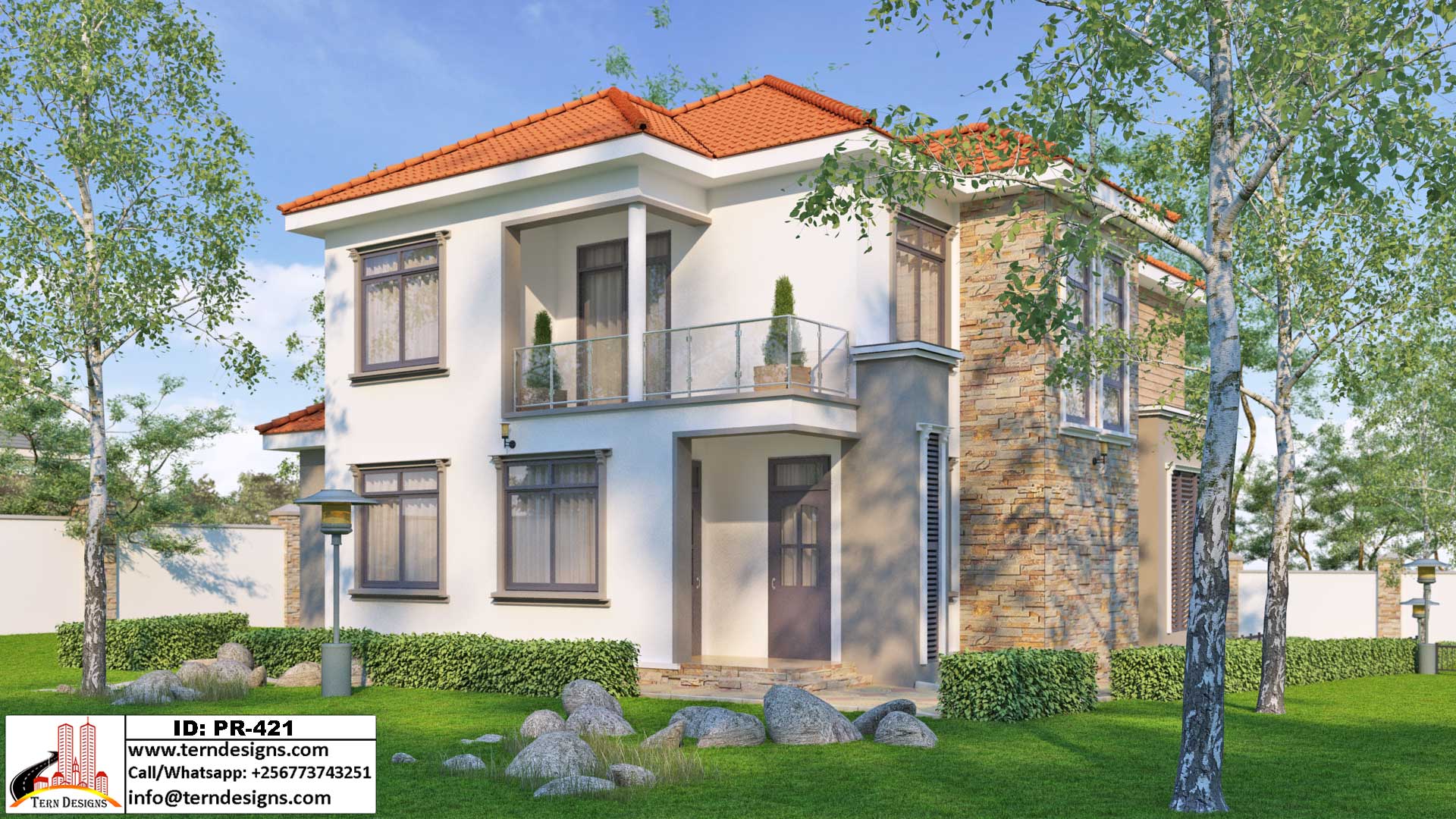

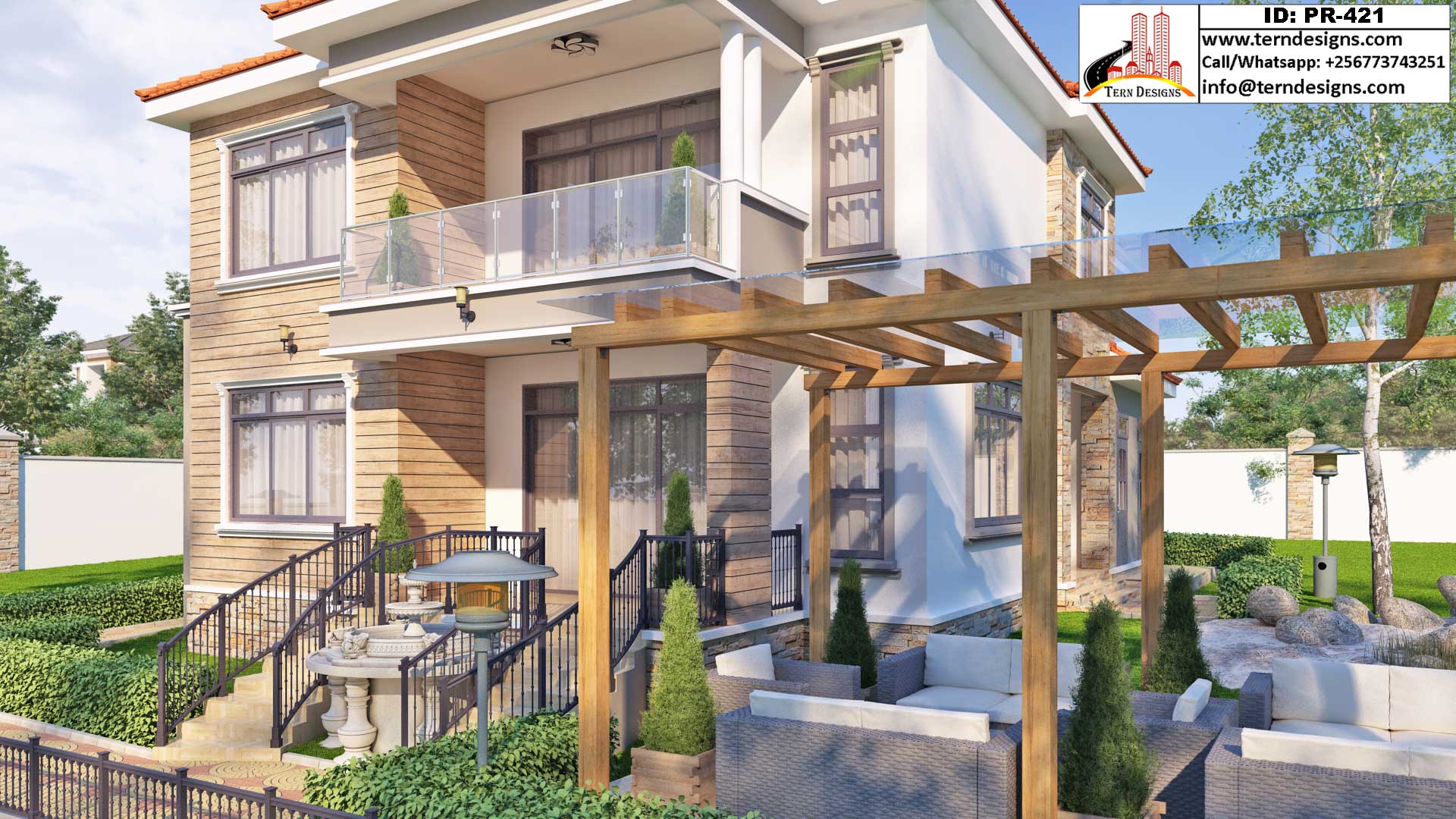

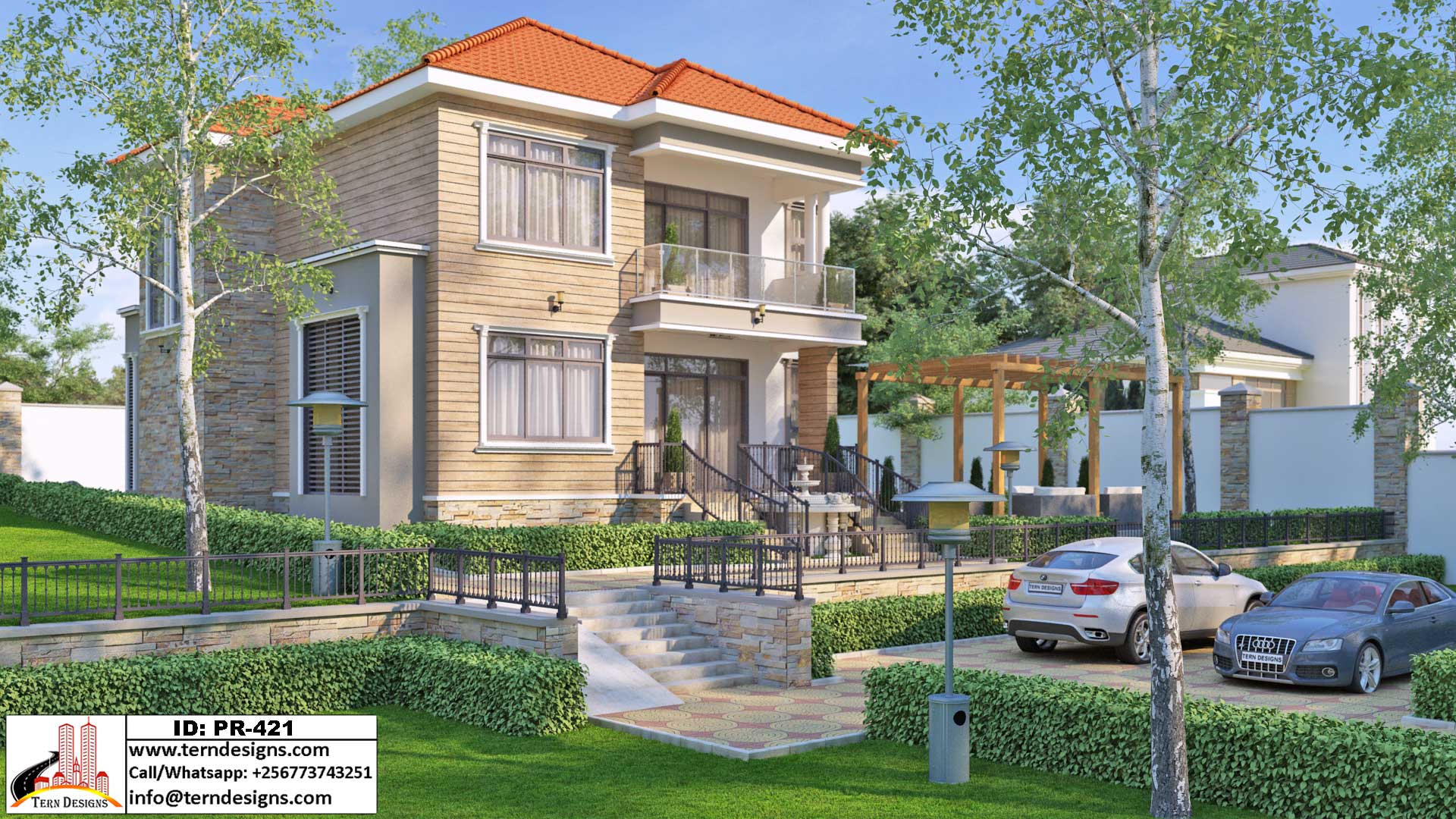

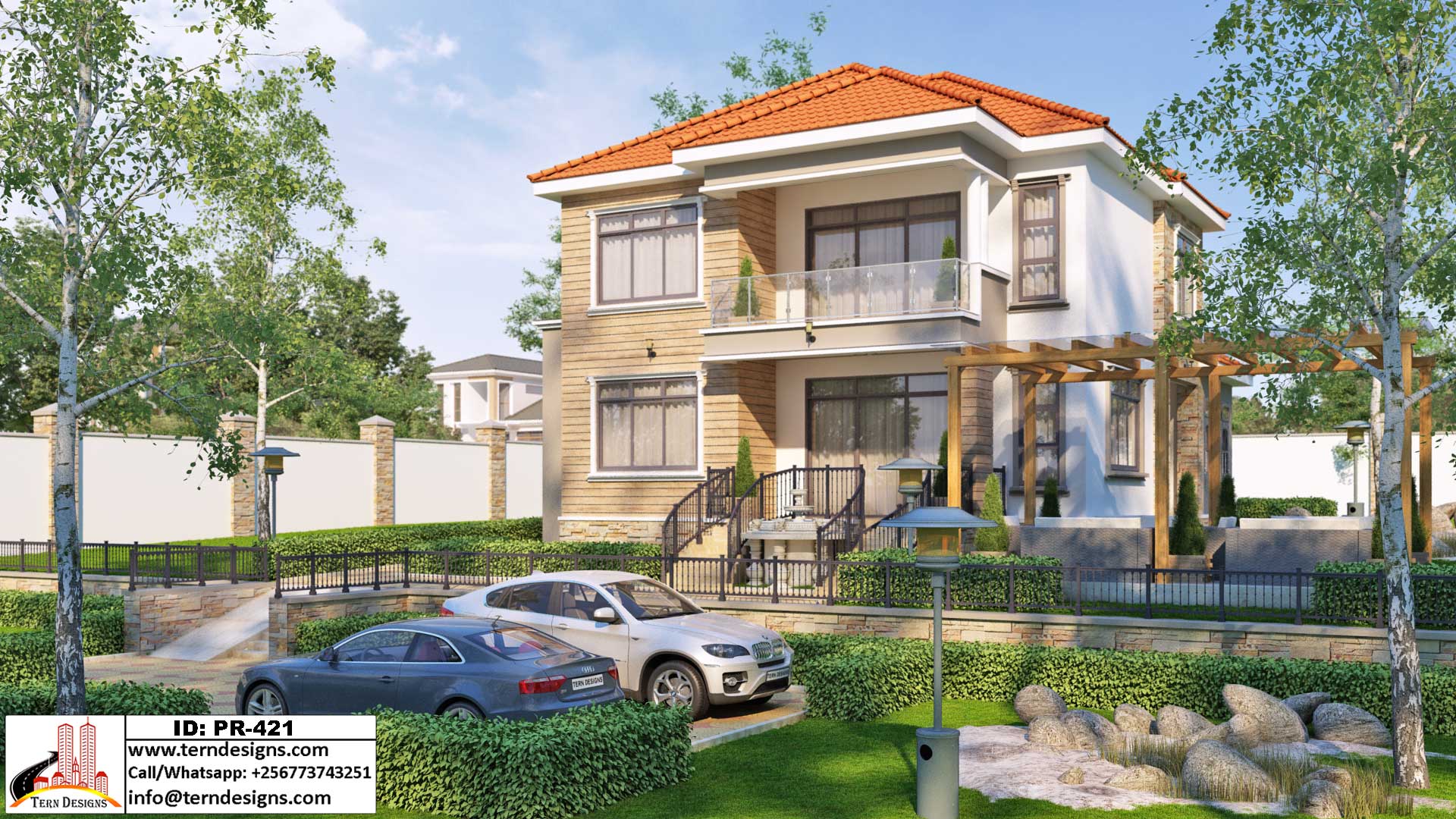

A 4-bedroom house design giving you ample space on even small plots of land. It has an extra servant’s room with an attached exterior bath and toilet.

$570 – $1,000

Clear
Want create site? Find Free WordPress Themes and plugins.

PLAN DETAILS

  • 2 Storeys
  • 4 Bedrooms (2 self-contained)
  • Width: 13.04m
  • Depth: 15.12m
  • Building footprint area: 161.9m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • Open Floor plan
  • Study Area under staircase
  • 4 Baths/toilets
  • 1 Store
  • 1 Walk in closet
  • 2 Balconies
  • Lounge area
  • 3 Porches
  • Servant’s Room



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor layout plans
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
