PR-294

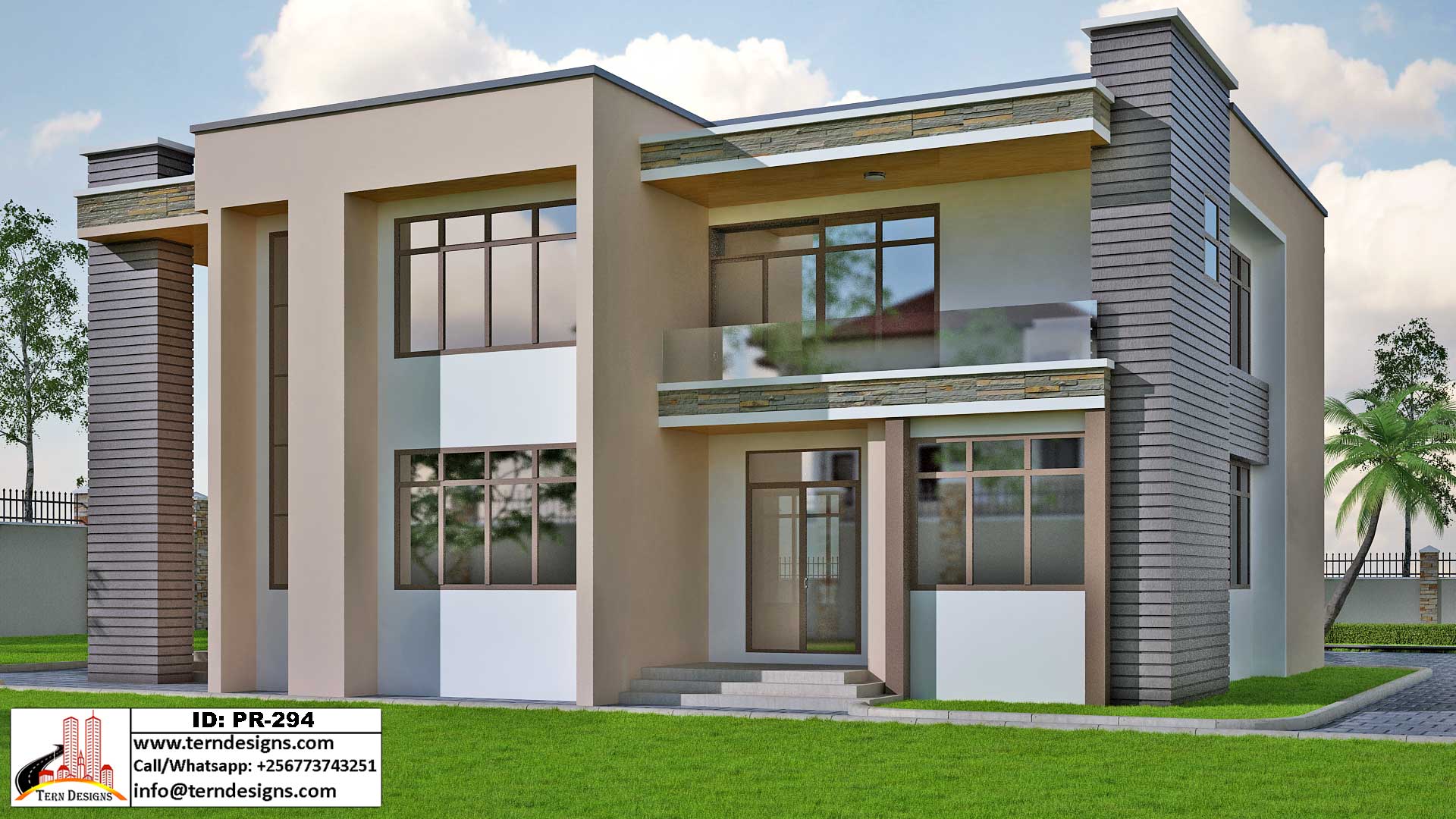

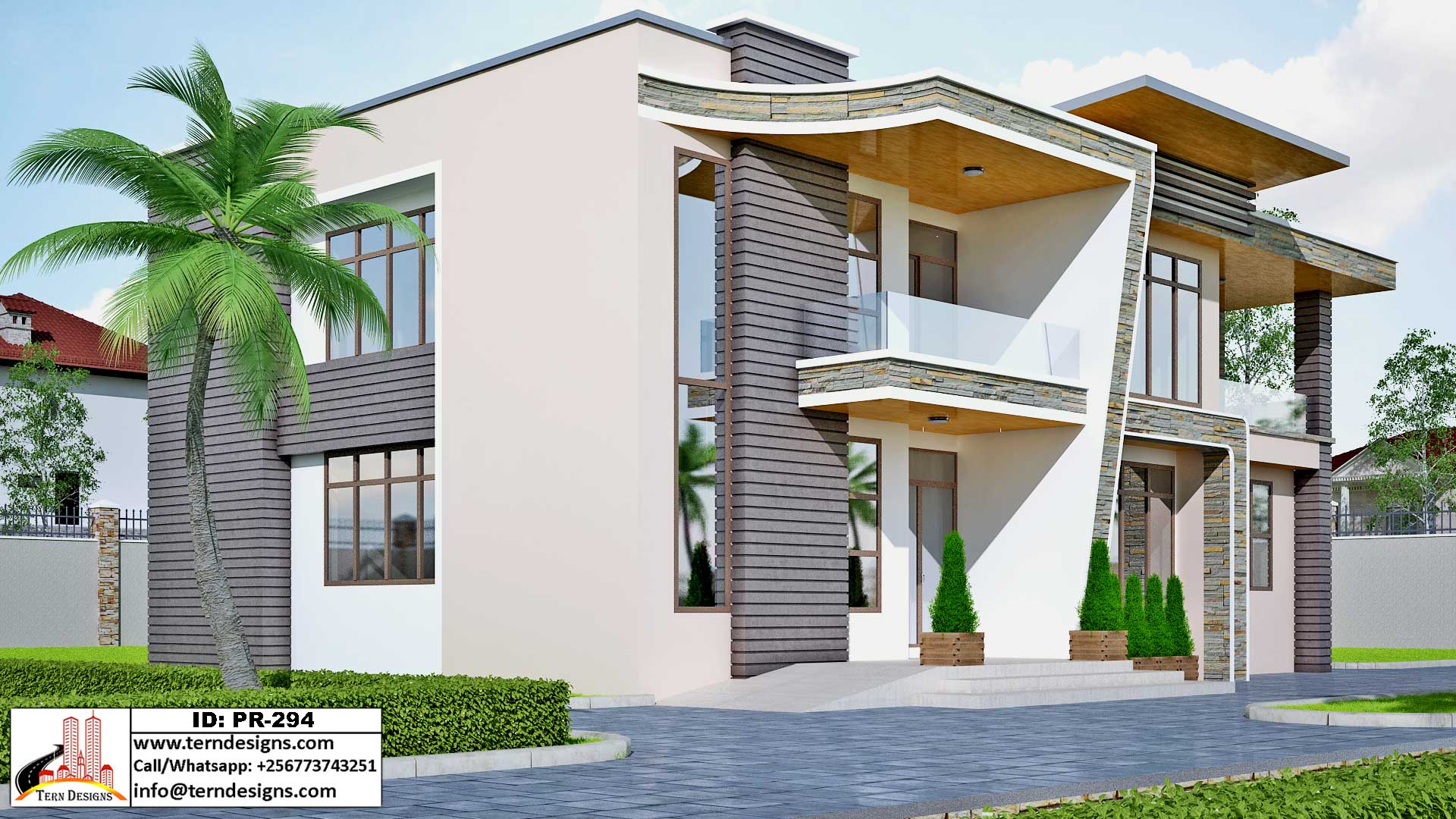

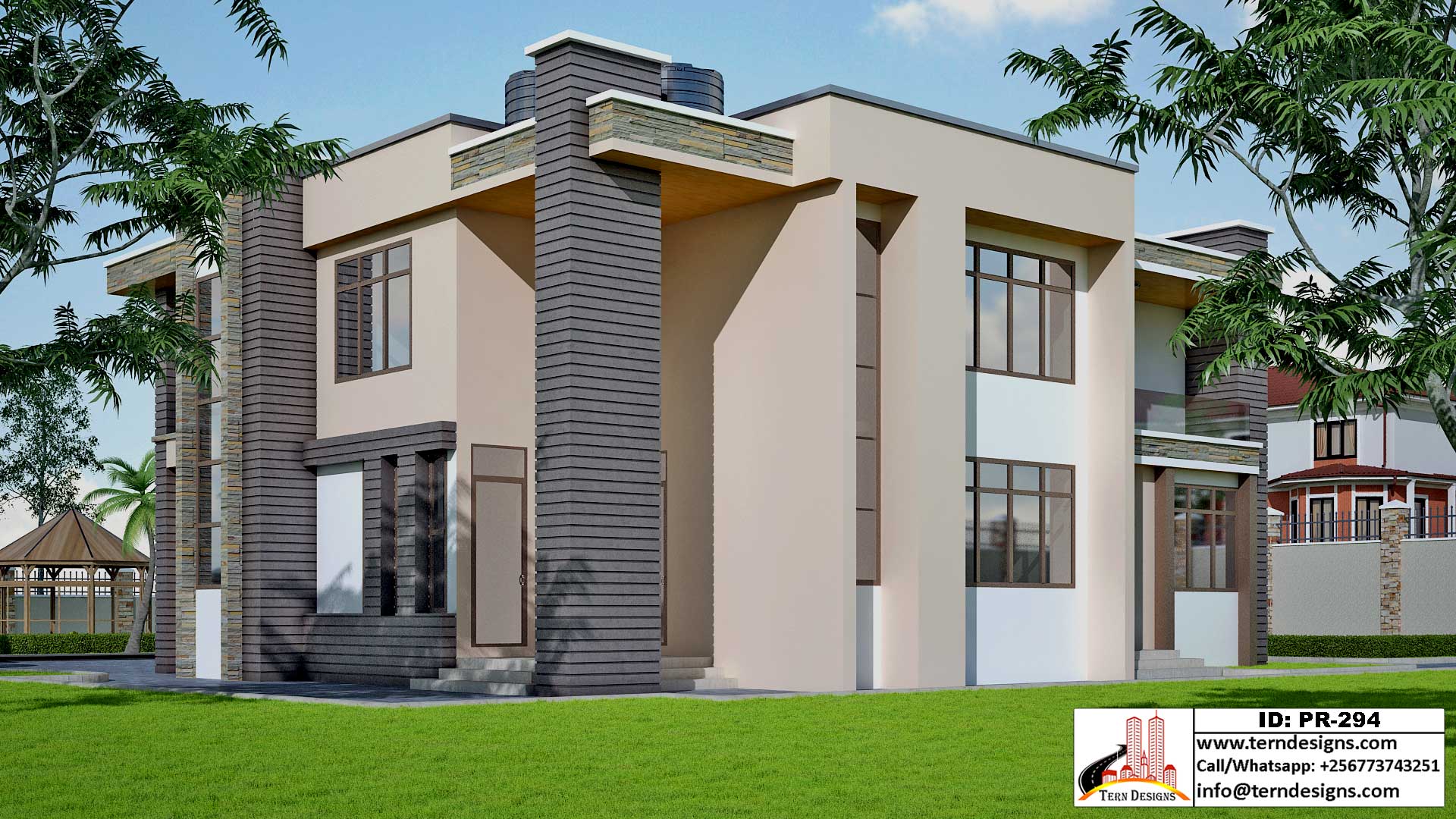

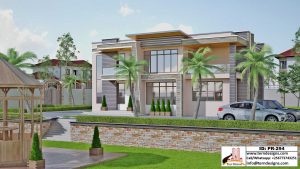

A 5-bedroom contemporary house design, which is not only spacious but also unique

$590 – $1,230

Clear
Want create site? Find Free WordPress Themes and plugins.

 PLAN DETAILS

  • 1 Storey
  • 5 Bedrooms
  • 3 Bedrooms Ensuite
  • Width: 17.95m
  • Depth: 16.3m
  • Building footprint area: 227.51m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • 1 Pantry
  • Open floor plan (Living, Dinning, Kitchen)
  • 4 Baths/toilets
  • 1 Office/Study room
  • 1 Walk in closet for master bedroom
  • 3 Porches
  • 1 Family room
  • 3 Balconies
  • 1 Laundry room



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents
  • Other relevant details



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
