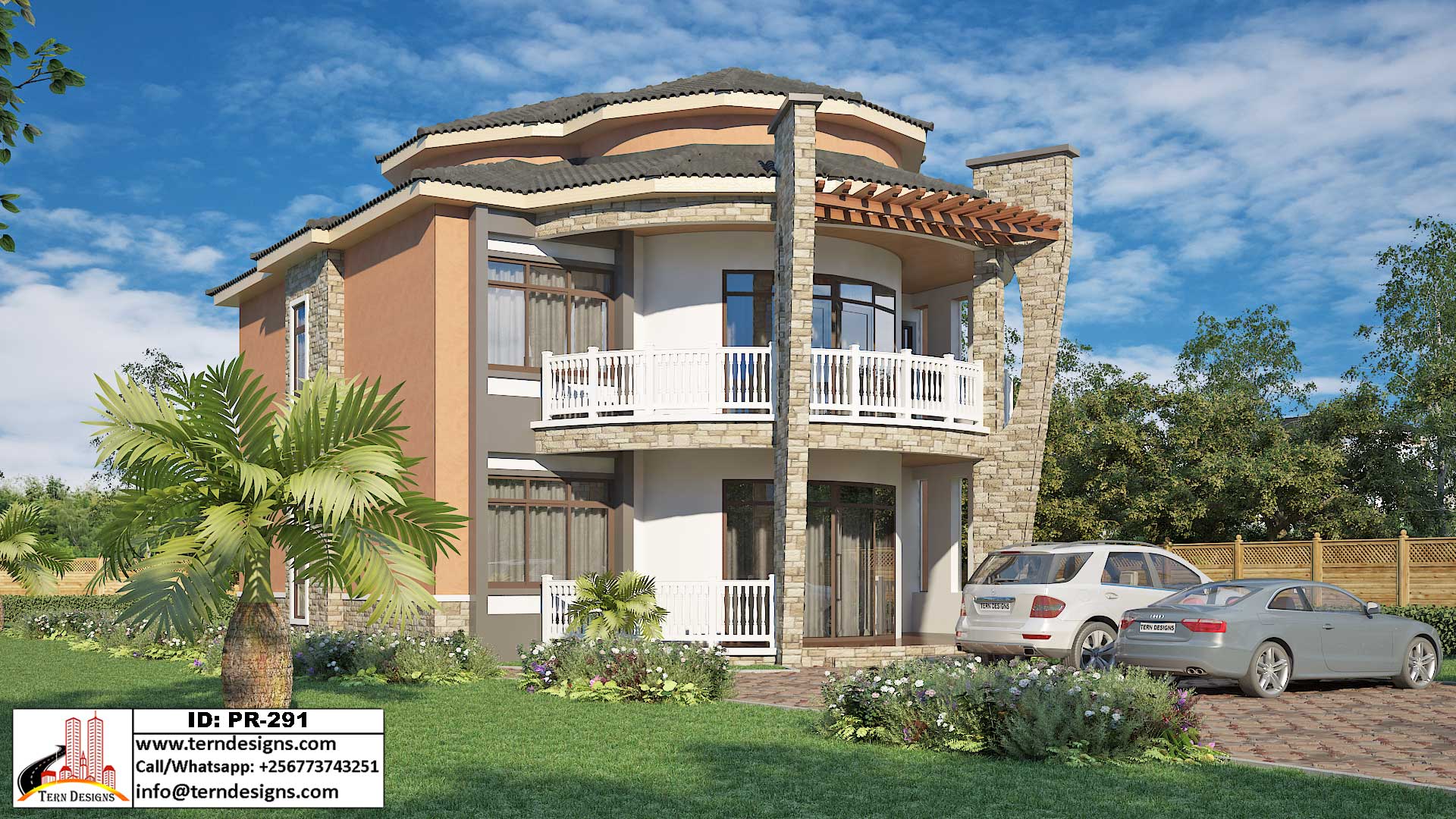

PR-291-View-01

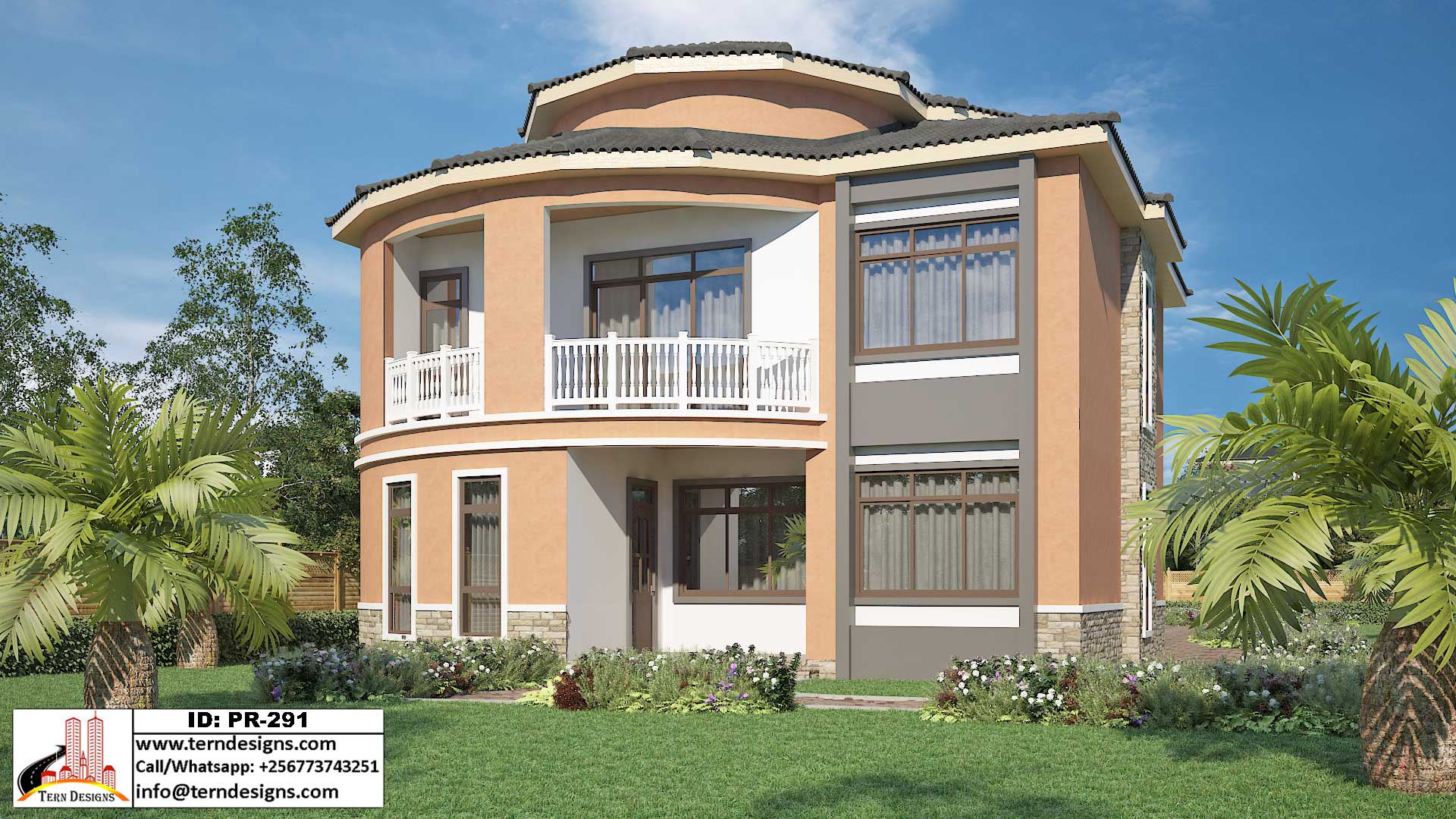

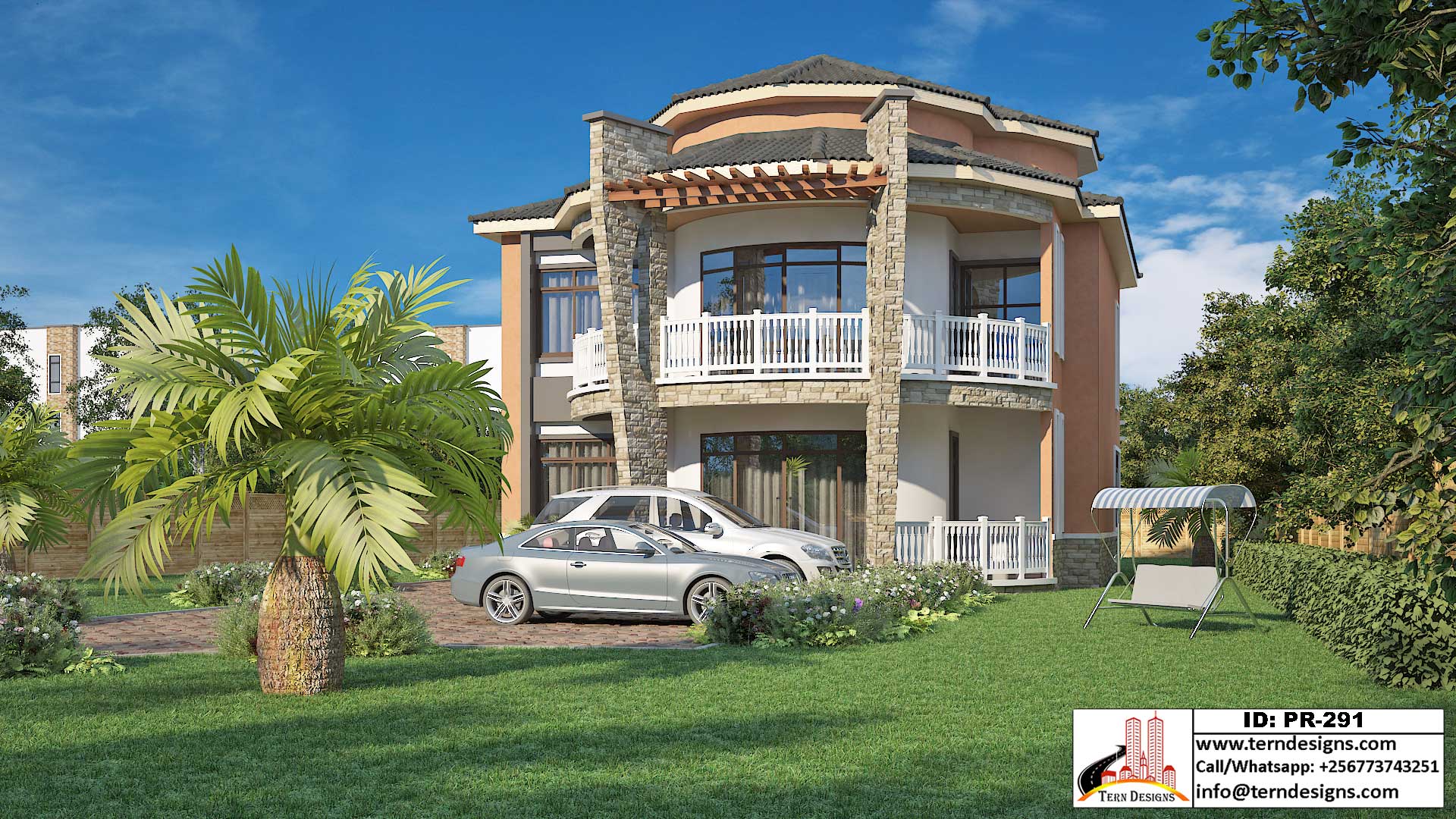

PR-291-View-03PR-291-View-02

PR-291

A 5-bedroom house design suitable for small plots of land. It’s an open floor plan with well-planned spaces done to fit in your economical needs.

$550 – $950

Clear
Want create site? Find Free WordPress Themes and plugins.

PLAN DETAILS

  • 2 Storeys
  • 5 Bedrooms
  • Width: 17m
  • Depth: 12.1m
  • Building footprint area: 163m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • 1 Pantry
  • Open floor plan (Living, Dinning, Kitchen)
  • Family room
  • 3 Baths/toilets
  • 1 Walk in closet
  • 2 Balconies
  • Front porch
  • Back Porch



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents
  • Other relevant details



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
