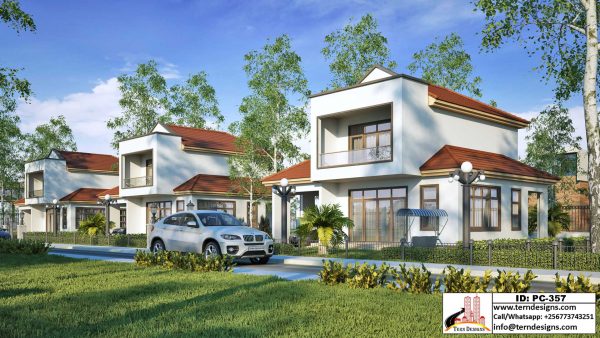

PC-357-View01

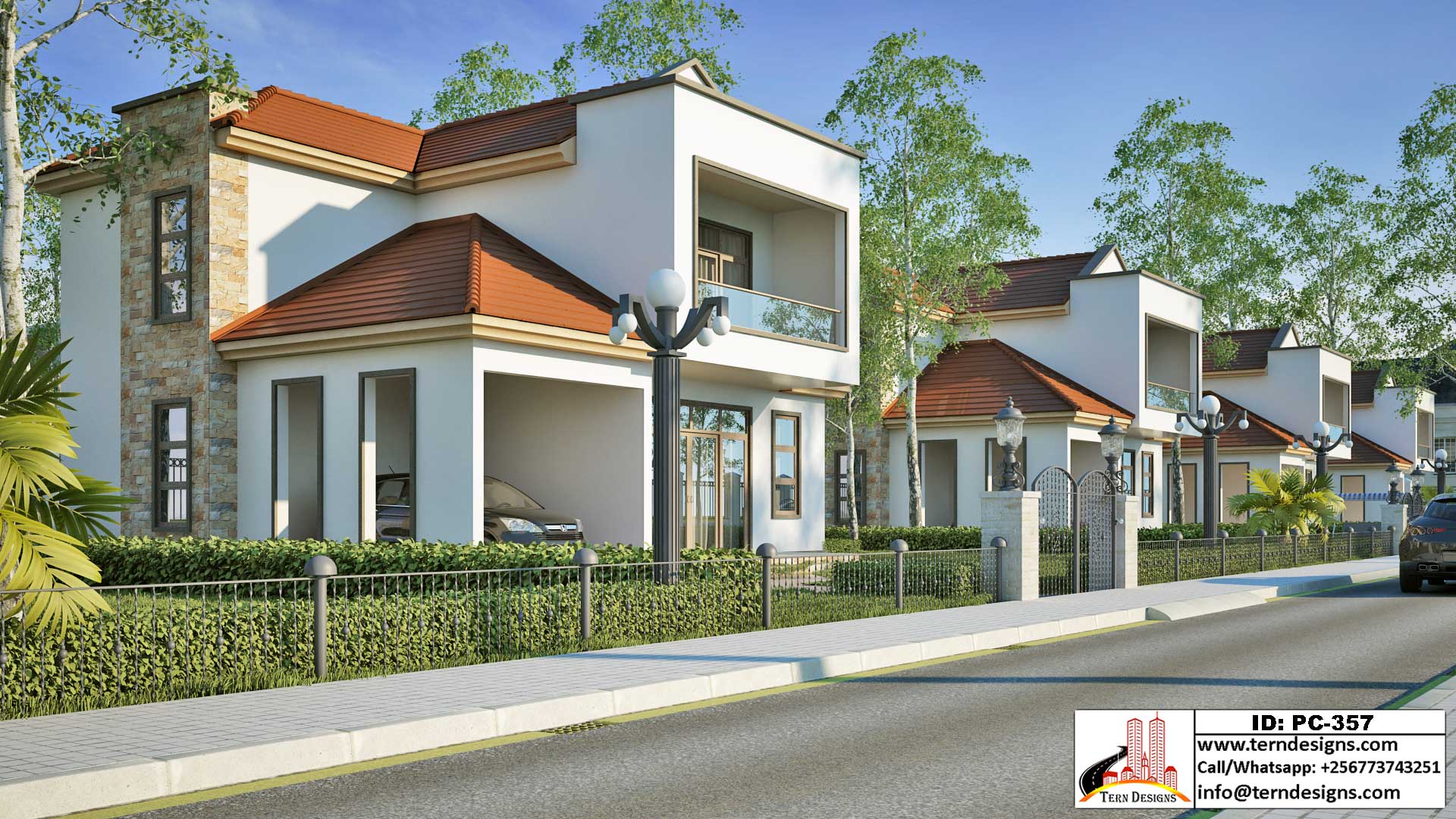

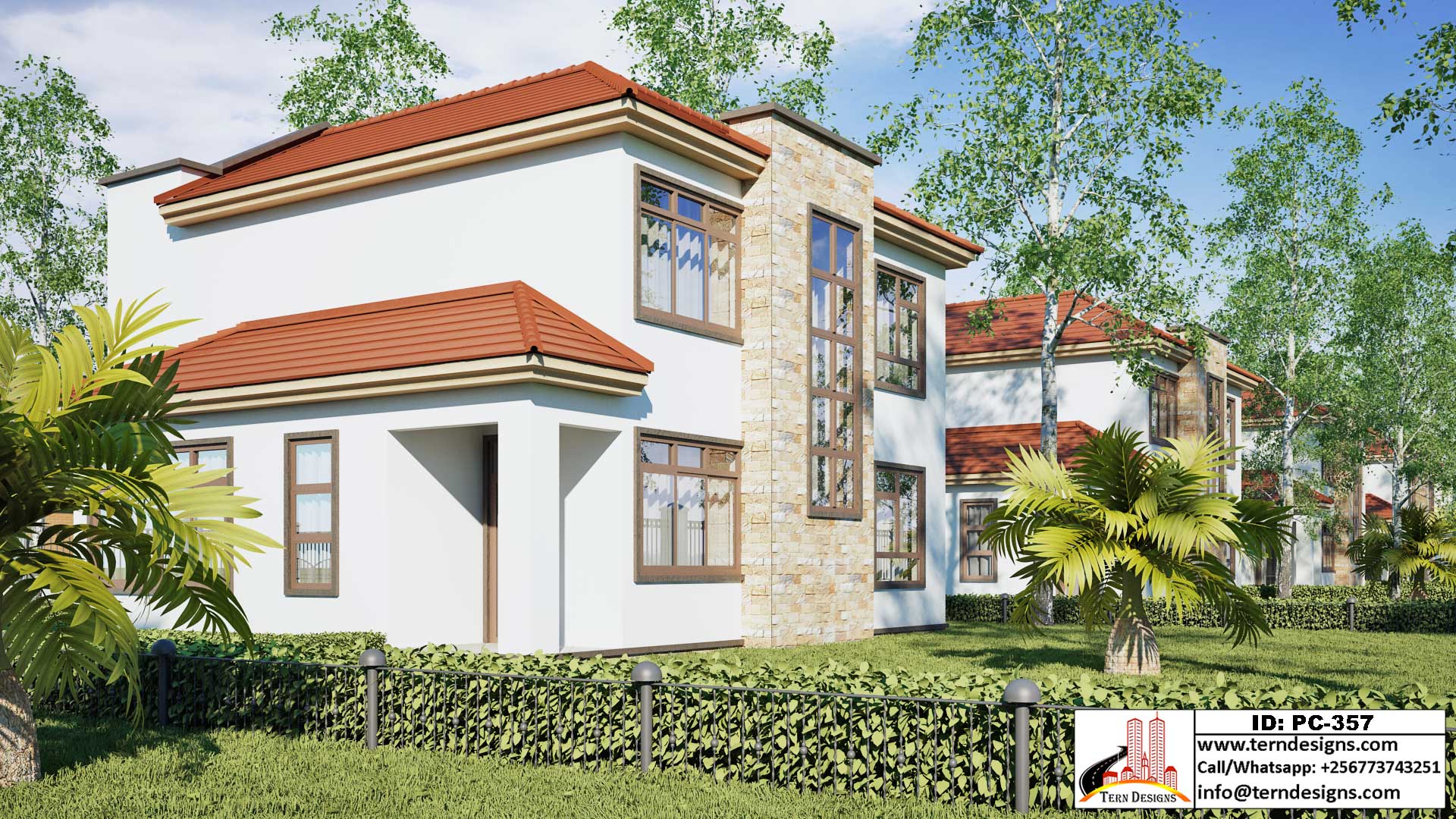

PC-357-View03PC-357-View02

PC-357

3 Bedrooms Units, 3baths, 2 Storeys

$285 – $515

Clear
Want create site? Find Free WordPress Themes and plugins.

PLAN DETAILS

  • 2 Storeys
  • 3 Bedrooms (Master bedroom ensuite)
  • Width: 11.6m
  • Depth: 11.4m
  • Building footprint area: 119m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • 1 Pantry
  • Open floor plan (Living, Dinning, Kitchen)
  • 3 Baths/toilets
  • 1 Walk in closet
  • 1 Balconies
  • 1 Car port
  • 2 Porches



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • 3D documents
  • Door and window schedules
  • Septic tank and soak pit details



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor layout plans
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
